Fingerprint Devices

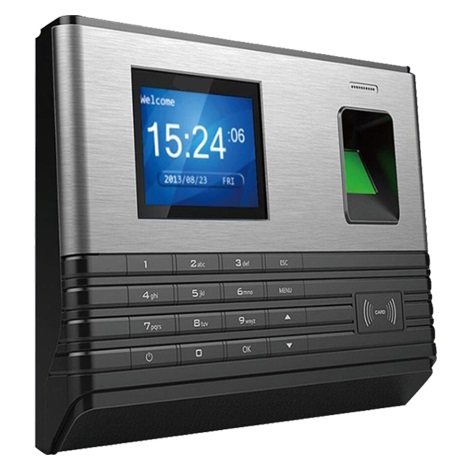

TimeTronic FP2300
TimeTronic FP2300 comes with elegant, robust design and highly reliable performance.
Equipped with internet P2P data transfer for remote installation with centralized administration (does not need public IP), internal UPS battery (optional).
Can be used for time attendance & access controller.
Adapting the newest finger verification system which bring the best accuracy, assures the high quality performance, stability and fast working speed.
Function | Time Attendance & Access Controller |
Finger Capacity | 3.000 |
Fingers per User | Up to 10 Fingers |
Transaction Memory | 100.000 |
Sensor | Optical Crystal |
Verification Speed | < 1 second |
Display | TFT Color LCD |
Verification Options | Finger, Password, Card, Combination |
Verification Method | 1:1, 1:N, 1:1:N |
Cable Comm. | TCP/IP, USB Cable |
Non Cable Comm. | Internet P2P, USB Flash Disk |
Access Controller | Available |
Internal Alarm | Available |
FAR | 0,00001% |
FRR | 0,0001% |
Network Capacity | TCP/IP = 255 units |
Working Mode | Stand Alone |
Power | 100-240V, 50/60Hz, 9Vdc / Internal UPS Battery |
Dimension | 20.5 x 14.5 x 4 Cm |
Environment | 0-45 C, 10-80% |
